Torque is often used as the primary verification method during fastening. Once a target value is reached, the cycle is considered complete, and the joint is assumed to be acceptable. While torque is an important installation parameter, it does not fully describe the condition of the joint after assembly. The true indicator of joint quality is the clamp load generated between the mating components, as it directly influences contact pressure, electrical continuity, and thermal transfer.
Clamp load is the force that holds components together and establishes the contact pressure at the joint interface. That contact pressure plays a critical role in maintaining electrical continuity and thermal transfer throughout the assembly. When the clamp load is consistent, current flow and heat dissipation remain more predictable. When it varies, differences in contact resistance can develop, creating localized performance variations that may not be detected during installation.
Formation of Clamp Load During Installation
Clamp load develops as the fastener advances through the drive cycle and seats against the components being assembled. This process involves fastener rotation, drive depth, and final seating torque. Each of these factors influences how efficiently force is distributed across the joint.
Variation can enter at any point in the fastening process. Differences in seating depth can leave uneven contact conditions, and, in some cases, resistance encountered during installation can cause a fastener to reach its torque target before being fully seated. When that occurs, the measured value does not reflect the actual condition of the joint.
These are not isolated issues. When installation conditions are not properly controlled, the same variations can be repeated through production, introducing inconsistencies in joint quality.
Effect of Joint Variation on Thermal Behavior
Once the system is in operation, variations at the joint level begin to influence performance. A joint that is not properly formed can create inconsistent connections, resulting in higher electrical resistance at the connection. These variations are difficult to detect during the assembly process and can cause localized heat generation when the system is performing under load.
Clamp Load and Thermal Stability
The thermal stability of the assembly depends on maintaining consistent contact across critical electrical interfaces. When clamp load is applied consistently, joint pressure remains uniform, helping to support proper current flow and thermal transfer through the assembly. Variations in clamp load can create inconsistent contact conditions that result in areas of increased electrical resistance. As current passes through these locations, additional heat is generated, creating uneven thermal behavior and placing additional stress on surrounding components. Over time, this thermal cycling and localized resistance can affect the reliability as well as how the assembly performs under operating conditions.
Preventing Escalation Through Process Control
Reducing these risks begins with how the joint is formed during installation. The objective is not only to achieve a target torque, but to produce the same clamp load for every fastener installed.
When fastening processes are repeatable, the clamp load becomes consistent across assemblies. This consistency reduces variation at the joint level helping minimize the conditions that lead to increased resistance and heat generation. By controlling the factors of clamp load, manufactures can reduce the likelihood that small deviations will develop into larger system-level issues.
Clamp load ultimately influences how a joint performs throughout its service life. When the fastening process is properly controlled, the pathway from installation variation to electrical resistance, heat buildup, and thermal instability can be significantly reduced.
WEBER Solutions for Clamp Load Accuracy
WEBER improves clamp load accuracy by measuring torque, angle, and depth throughout the fastening process, not just the final torque value.
WEBER transducers and analog depth sensors help detect issues like cross-threading, stripping, or incomplete seating, while the C30 control platform provides fastening validation and traceability across every drive cycle along with our C50 controller.

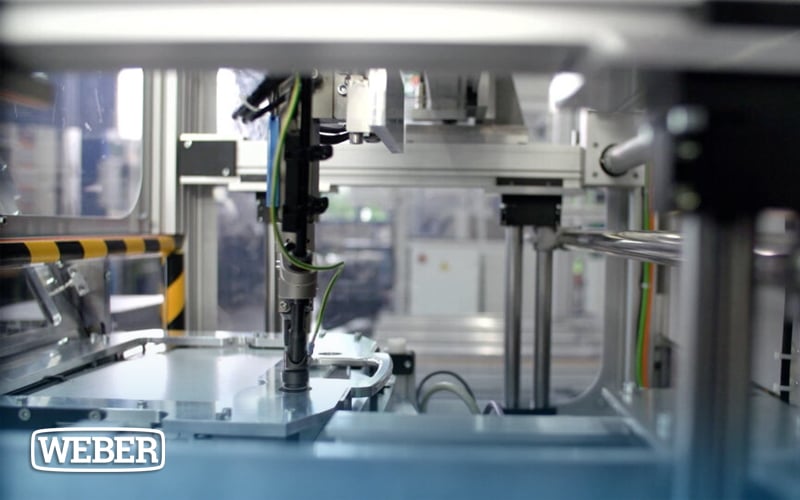

For battery assemblies, WEBER’s SEV-P robotic fastening system delivers repeatable clamp load through automated, highly consistent installation processes.
Process Reliability
Reliable performance begins with consistent joint formations. While torque remains an important part of the fastening process, achieving proper clamp load requires visibility into all aspects of the dive cycle.
WEBER addresses this challenge by combining Transducer-based torque readings, micrometer-grade depth sensing, as well as precise degrees of fastener rotation for each drive cycle with components like the C30 proces control to verify how every joint is formed uniformly and identify issues before they reach downstream processes.
The result is improved fastening consistency, more predictable clamp load, and greater confidence in the electrical and thermal performance of every connection. For manufacturers, that level of process control helps support long-term system reliability while reducing the risk of joint-related failures, thus reducing defects and increasing ROI.
