    Bowl Feeder ZEB



    Abrasion-resistant surfaces

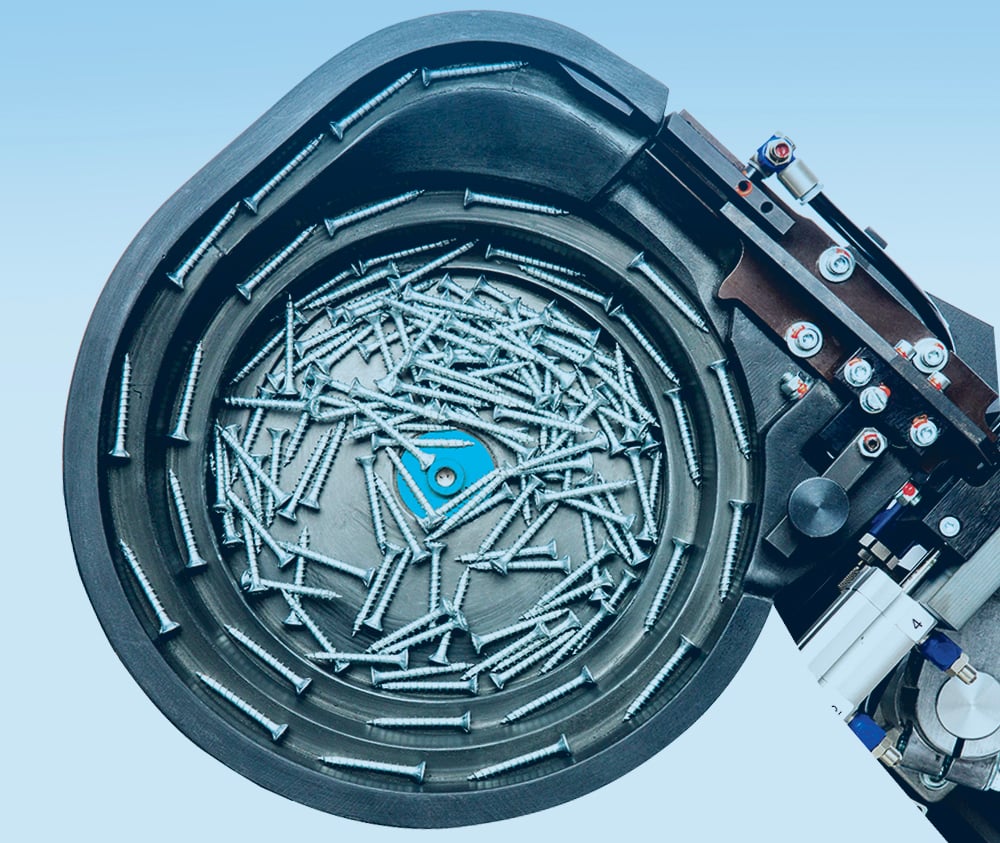

    The bowl feeder ZEB is suitable for sorting, buffering and transport of various small parts and fasteners. Screws, nuts, pins, washers, caps and special elements are fed gently from the hopper to the screwdriving spindle thanks to abrasion-resistant surfaces of the feeder. A noise-insulated vibration mechanism provides for the propulsion. In addition, the noise emissions can further be reduced through a sound enclosure cover.

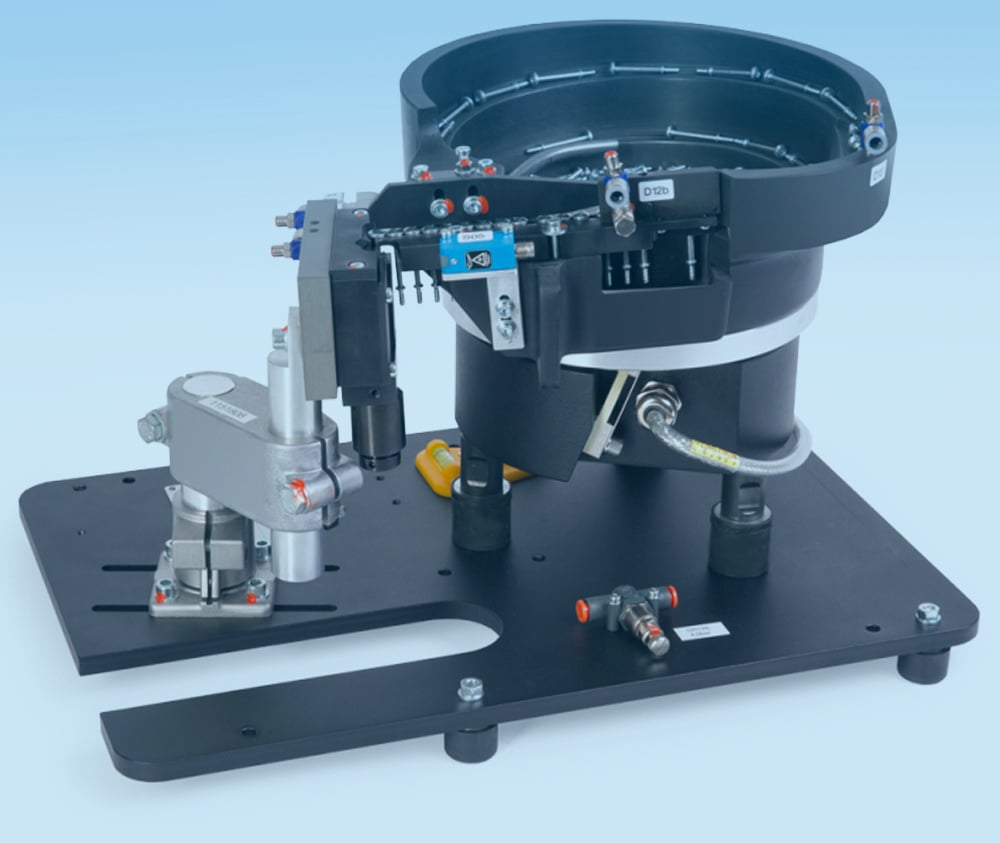

    The ZEB system is comprised of a base plate where the polymer bowl feeder is mounted adjacent to the highly reliable and proven WEBER escapement. In conjunction with each other this offers a super quiet, “second-to-none” method of delivering ‘oriented’ fasteners to a wide variety of tools and spindles at a high speed. The ZEB comes without controls, but can be ordered with different control packages ranging from simple feeder controls, to advance process controllers capable of running a spindle, or hand piece.  The ZEB is the perfect feeding system if you require a reliable, long lasting feeding solution that, with proper maintenance, won’t jam or foul up.

    Bowl Feeder - Main

    Optional equipment

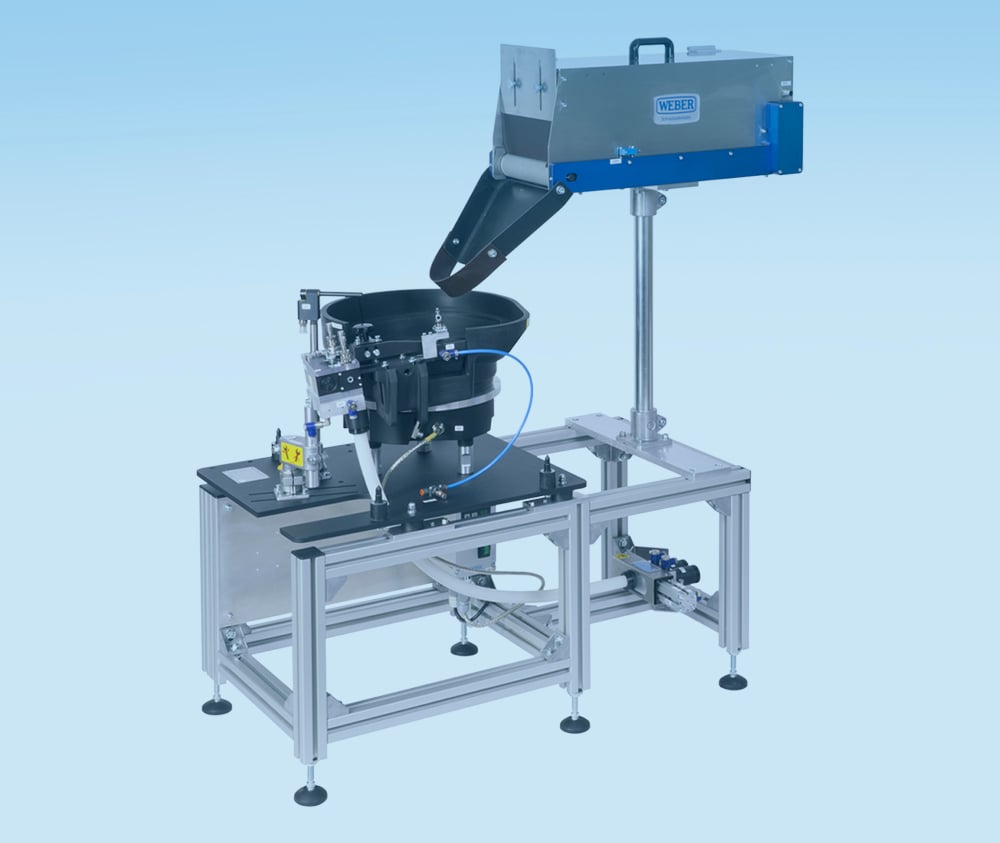

    The ZEB can easily be deployed at various locations (such as in pick & place applications). Level sensors, a presence control, and position indicators are optionally available. The belt hopper is also available as an accessory and extends the refill intervals of the fasteners to be fed.



    Learn More About Our Feeding Systems

    We make automation easy

    Custom Screwdriving Solutions + Industry-Leading Support



    Request a Quote

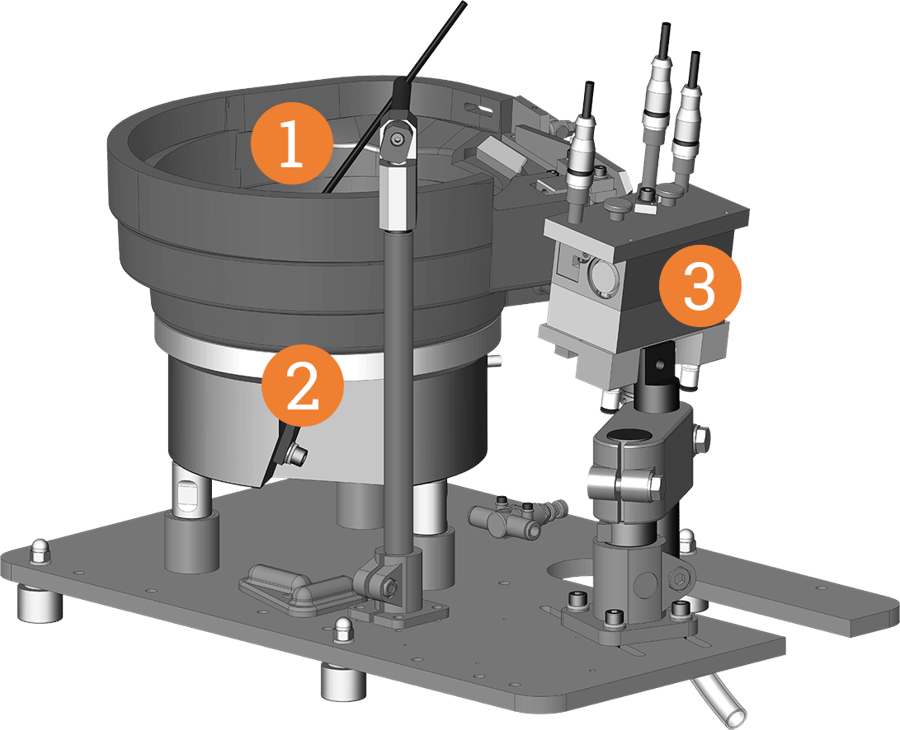

    Bowl Feeder - Features Image

    Features

    Abrasion-resistant polycast bowl material

    Special coating protects the screws and ensure long running times and reduced noise

    Hardened tool steel is used on all critical areas (escapement, tracks, sorting areas)

    Bowl Feeder - number list 2



    Screwdriver for nuts and head-heavy fasteners SEK with ZEB WEBER

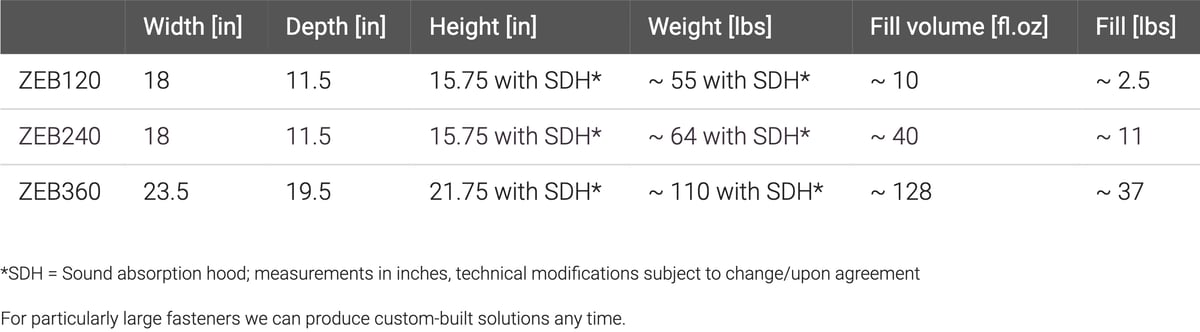

    Technical Data



    Bowl Feeder - Specs

    WEBER CTA - Download Data Sheet



    New call-to-action



    New call-to-action

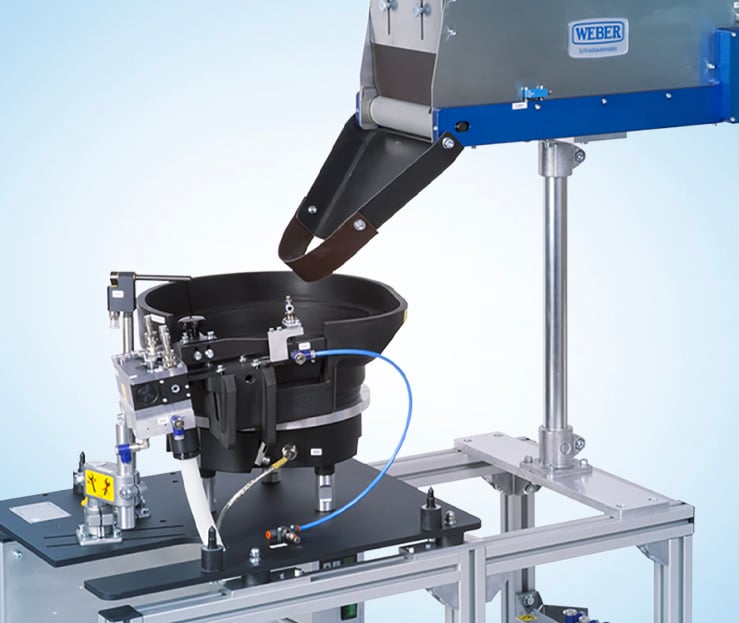

    Bowl Feeder Specs Image 2
