Extended Vacuum Screwdriver SEV-E



For hard to reach screwdriving locations

The WEBER SEV-E Fixtured systems features a stroke length of 300mm, and the ability to perform active depth installations. This means the spindle can touch of of a part surface, identify it’s z axis height, then drive to depth from that point allowing multiple depths per assembly. This unit is constructed with a highly reliable and rugged design which is the standard within the industry for fixed spindles.  These units are for use on a single stage application or when a robot or other slide will bring the driver spindle closer to the work pieces for installation of the fastener.  The special Vacuum nosepiece and Vacuum bit can be instructed to self-advance its bit stroke device and install fastener while detecting that the depth was achieved or not. When the start signal is given usually through a PLC control system to a solenoid valve the vacuum bit advances forward out of the jaws to expose the bit and fastener. This proven design can get into access locations normally inaccessible by conventional means, and allows fasteners to be installed down into deep recesses. Only the legendary WEBER reputation of reliability could provide this level of technical solution. Customization is performed on most systems to ensure the utmost functionality for each fastener size and style. This device can accommodate almost any style of Pneumatic or Electric motor drives and can be used singly or in multiples for more complex fastening. They can be used at any angle and even upside down for those difficult inverted applications. These are often fitted with sensors to provide input to a PLC for control or reporting functions.



Learn More About Our Fixtured Screwdrivers

We make automation easy

Custom Screwdriving Solutions + Industry-Leading Support



Request a Quote

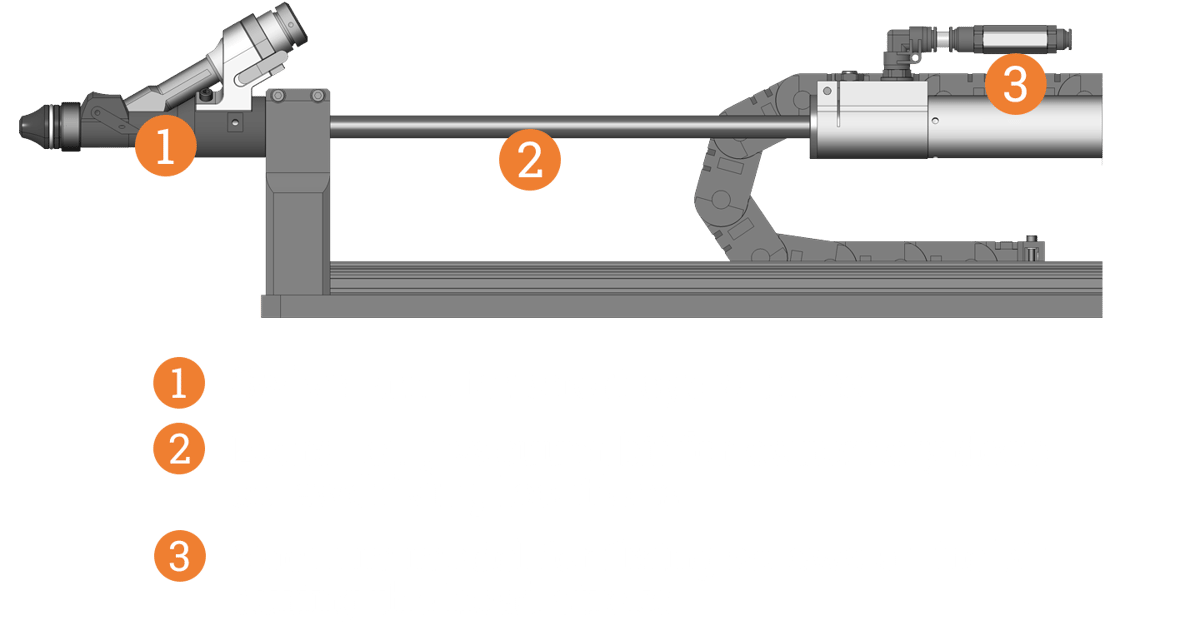

SEV-E - Features Image

Features



Screwdriving spindle with vacuum technology that allows accessing of even extremely recessed and hard-to-reach screwdriving locations

Automatic feed system

Cable carrier to help avoid cable damage

High durability thanks to wear-resistant surfaces, even without lubrication (low oil operation)

Compact design thanks to the parallel arrangement of screwdriver- and head stroke

Technical Data

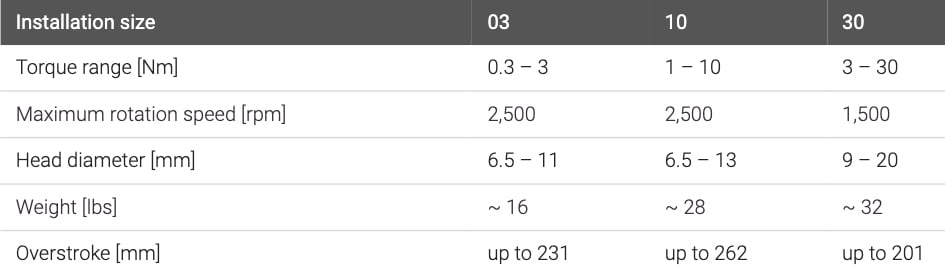

SEV-E Specs

WEBER CTA - Download Data Sheet



New call-to-action



New call-to-action

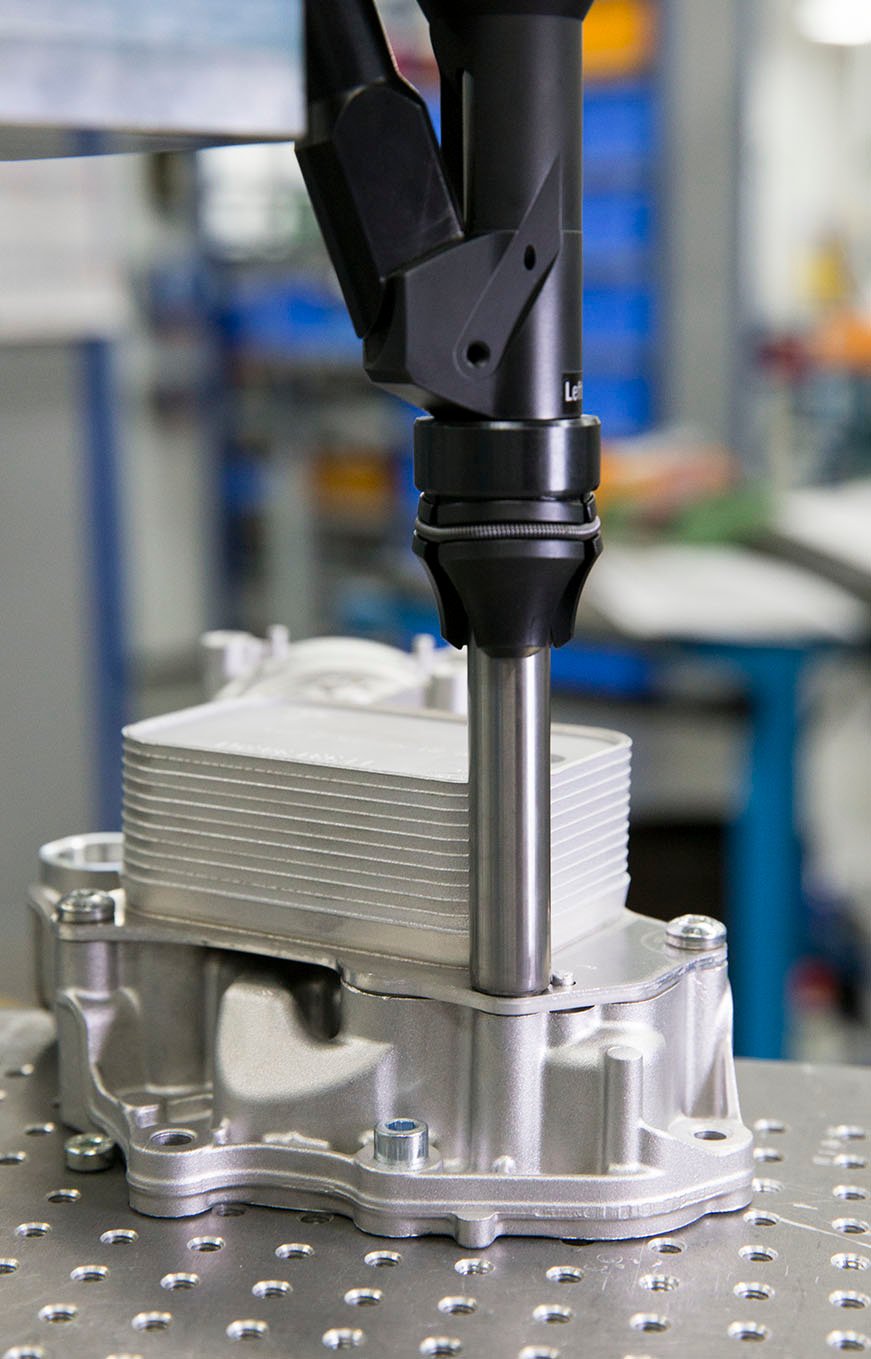

SEV-E Specs Image
