Captive Insert Setting System (Spin-Pull Process) SBM



Efficient system for blind riveting

For setting captive inserts, WEBER supplies an automatic setting unit suitable for round and hexagon head, steel or aluminum inserts in sizes between M5 and M12.

The controller and the feed system are integrated and form a single unit. Unlike older technologies, two separate DC servo drives handle the threading and setting process – the entire process is controlled by a programmable PLC and the setting process can be visualized on a control panel. This offers ultimate control over the process and quality monitoring of the installation.

This technology leaves a high quality, high strength threaded hole in sheet metals and extrusions to allow mounting of hardware or other assemblies.



Learn More About WEBER System Solutions

We make automation easy

Custom Screwdriving Solutions + Industry-Leading Support



Request a Quote

Captive Graph

Features



Setting force up to 25 kN

For hexagon and round nuts between M5 and M12

Built-in control

Visualization on a screen

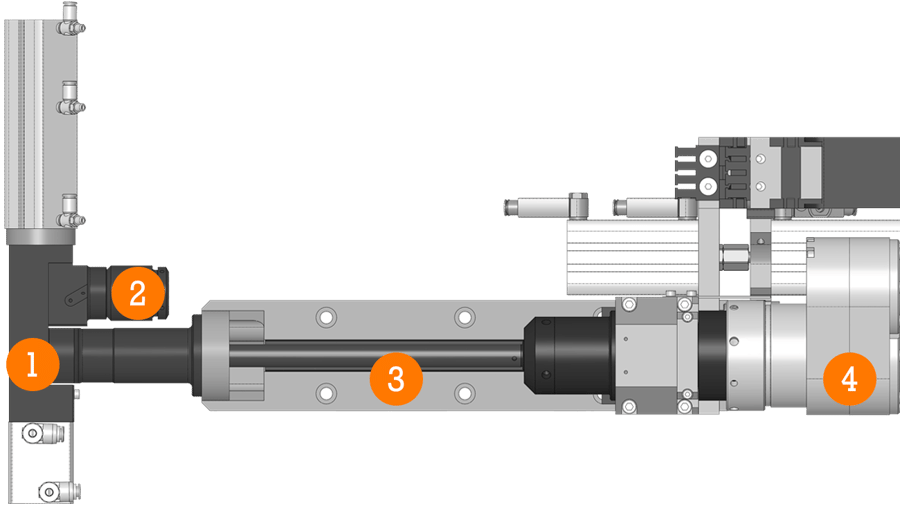

Captive Features List



WEBER CTA - Download Data Sheet

Download Brochure

New call-to-action

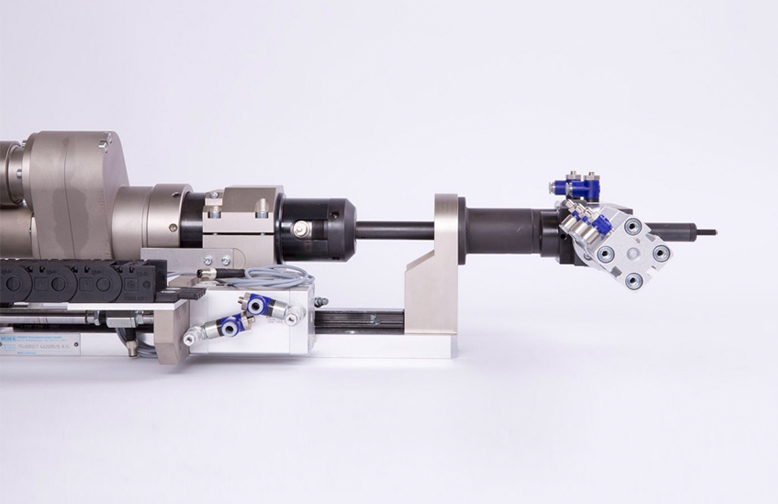

Captive Insert 2
W P1

Phase 1

Threading and aligning the blind rivet nut

W P2

Phase 2

Feeding the blind rivet nut into the work piece

W P3

Phase 3

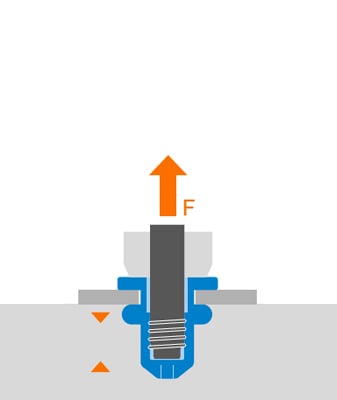

Threading mandrel is retracted and the blind rivet nut is pulled at the top edge

W P4

Phase 4

The threaded mandrel is unthreaded when the inserting process is finished
