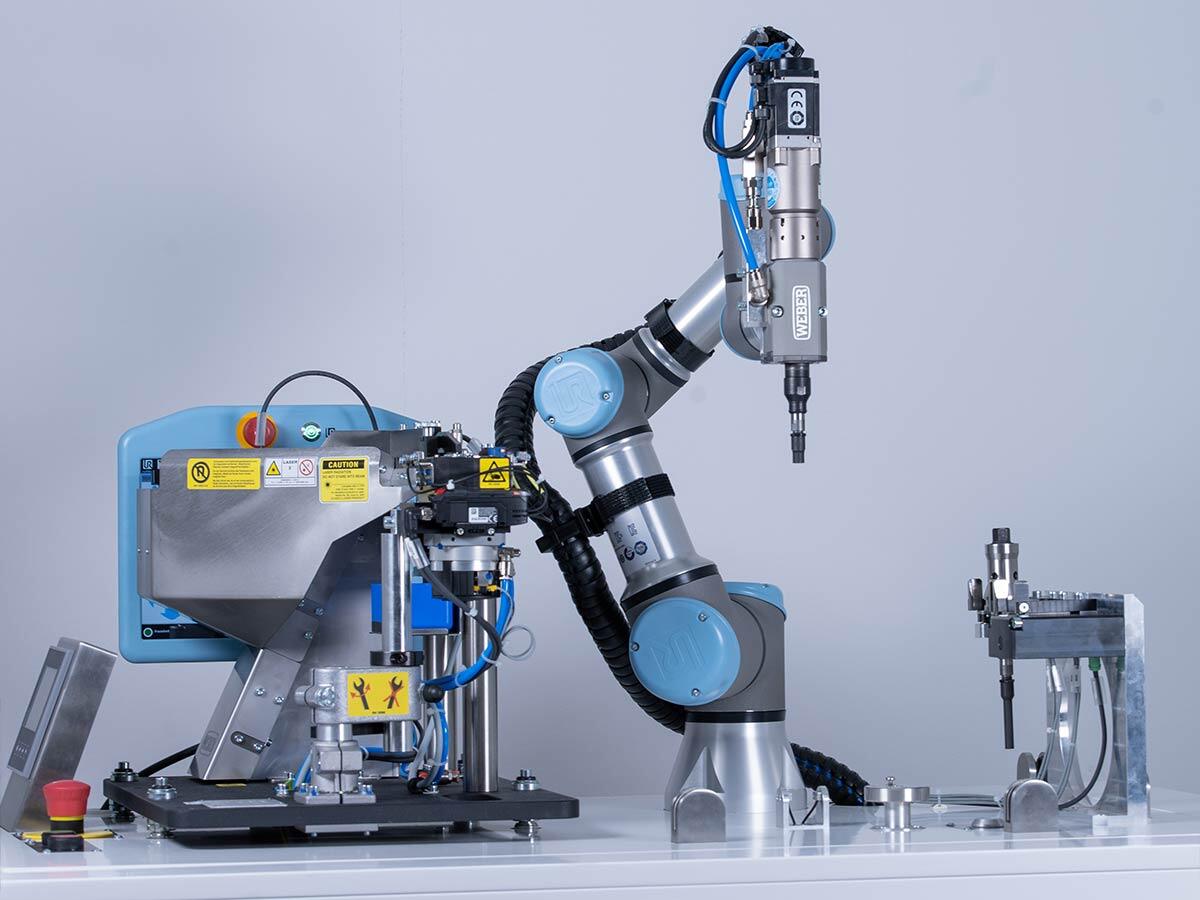

Pick & place screwdriving applications for lightweight robots

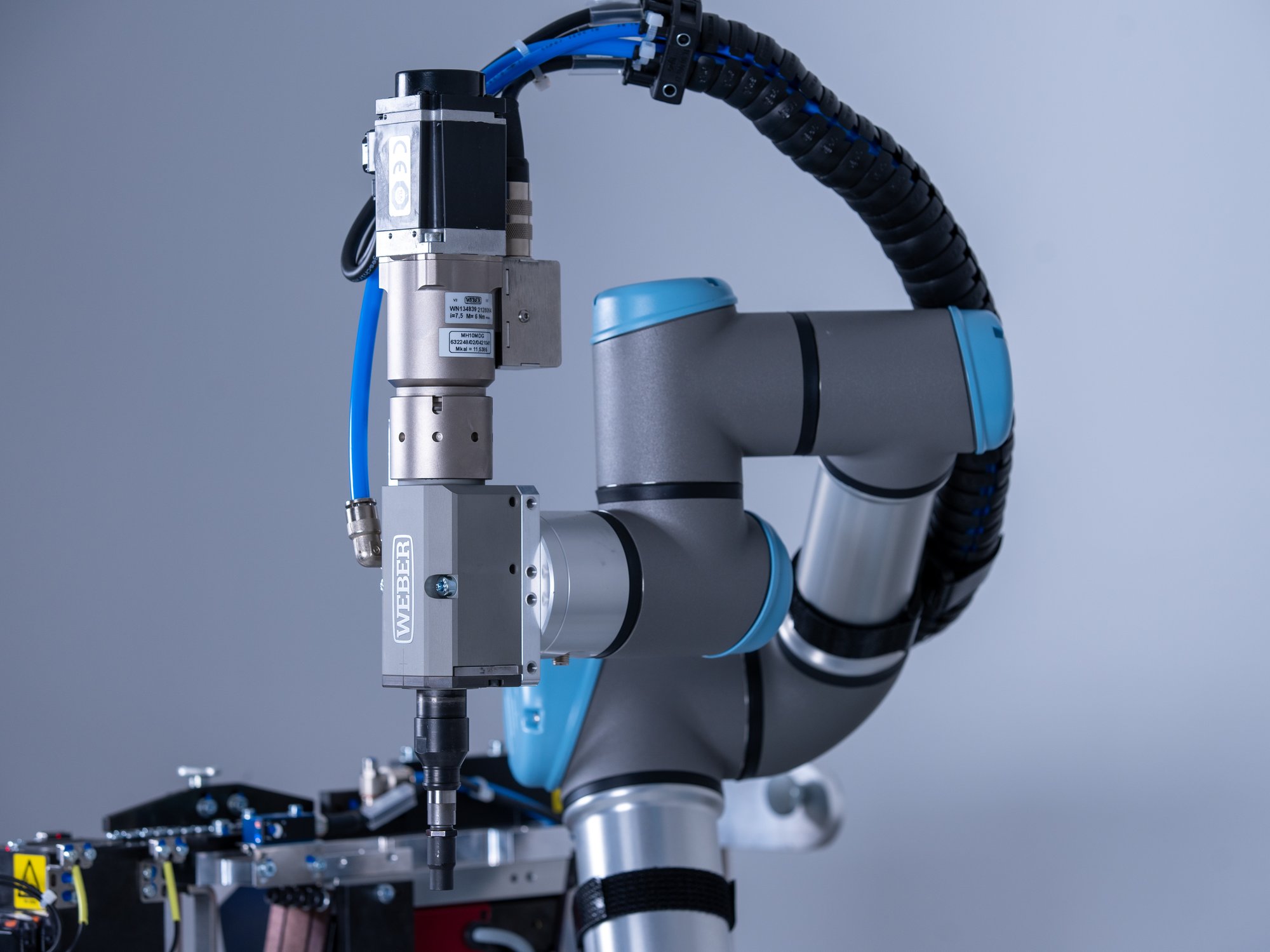

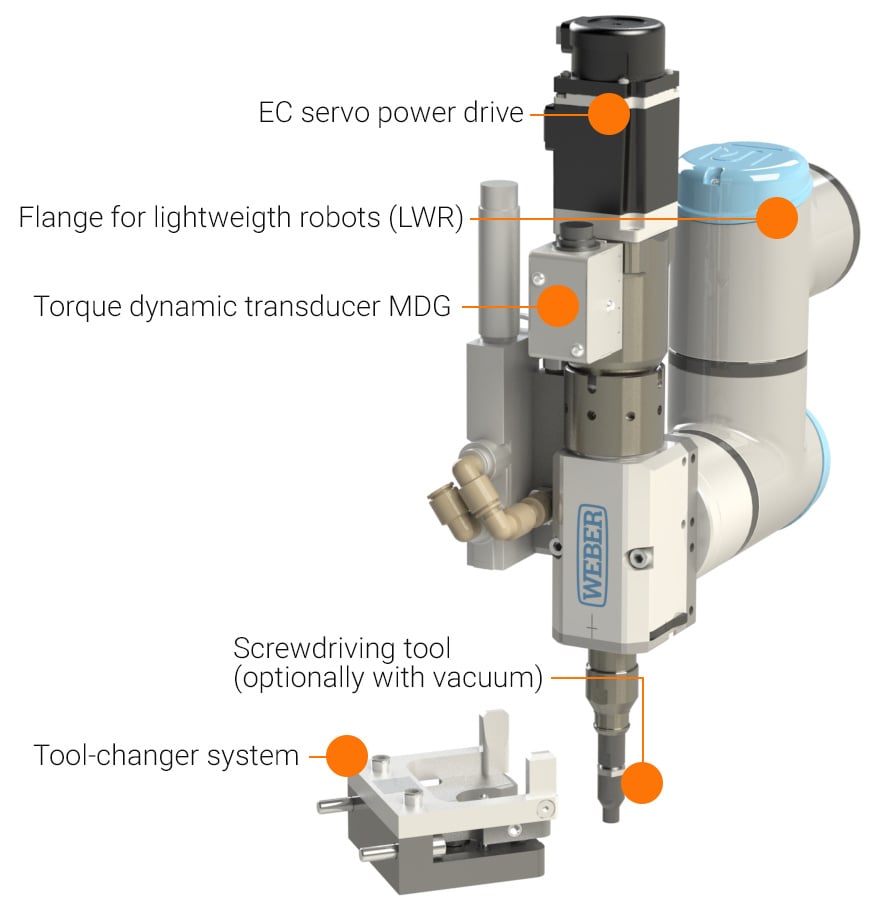

The SEV-P is a tightening screwdriver without automatic feed system, designed for pick & place applications. WEBER vacuum technology allows the fastener to be fetched, guided reliably to the fastening point and fastened with the screwdriving spindle. Thanks to the extremely compact design, the 6 Nm spindle weighs just 1.5 kg. The screwdriver has a flange as per ISO 9409-1-50-4-M6 and is therefore suitable for adaptation to a variety of different lightweight robots.

Screwdriving technology with tool changer system for working with a variety of fasteners

An expandable tool changing system allows a variety of different tools to be integrated, which can be used with different screwdriving programs as required. The great advantage lies in the option of fully automating assembly tasks for different fasteners.
