System Solutions

Flow Drilling Joining System RSF



For flow drilling screws with automatic feed system

As modern vehicle design shifts focus to light weight mixed material construction, assembly processes and technologies are changing along with it.

Greater use of aluminum and high tensile steel hybrid construction requires thinking and different joining methods. This is where flow drilling technology comes into play. Flow drilling technology allows joining of these dissimilar metals with or without a clearance hole in the top layer and make for shorter overall cycle times, single-sided application and a lower cost per joint.

Flow drilling technology is used when vehicle construction geometries and assemblies become more complicated, only one side of the joint requires access in order to correctly install the fastener. There is no need for a large C shaped anvil on the back of the joint like other joining technologies. This is ideal for closeout or difficult to access locations where riveting is not an option. Unlike other conventional joining technologies like riveting, piercing or welding, flow screw joints are removable and repairable allowing for a greater degree of flexibility during production and during any later body repairs, should they be required throughout the vehicle life.



QUESTIONS? LET'S TALK

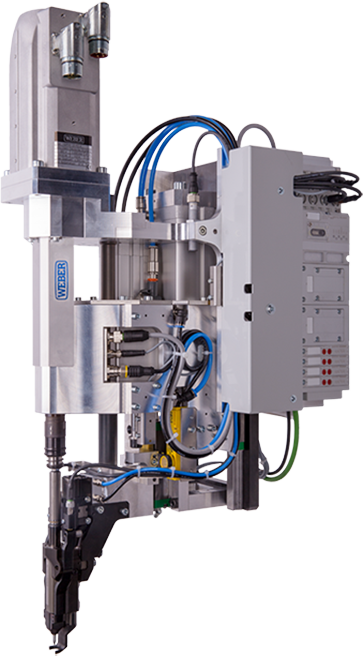

RSF

+0

RSF System Installations in North America

+0

Successful Fastener Installations

We make automation easy

Custom Screwdriving Solutions + Industry-Leading Support



Request a Quote

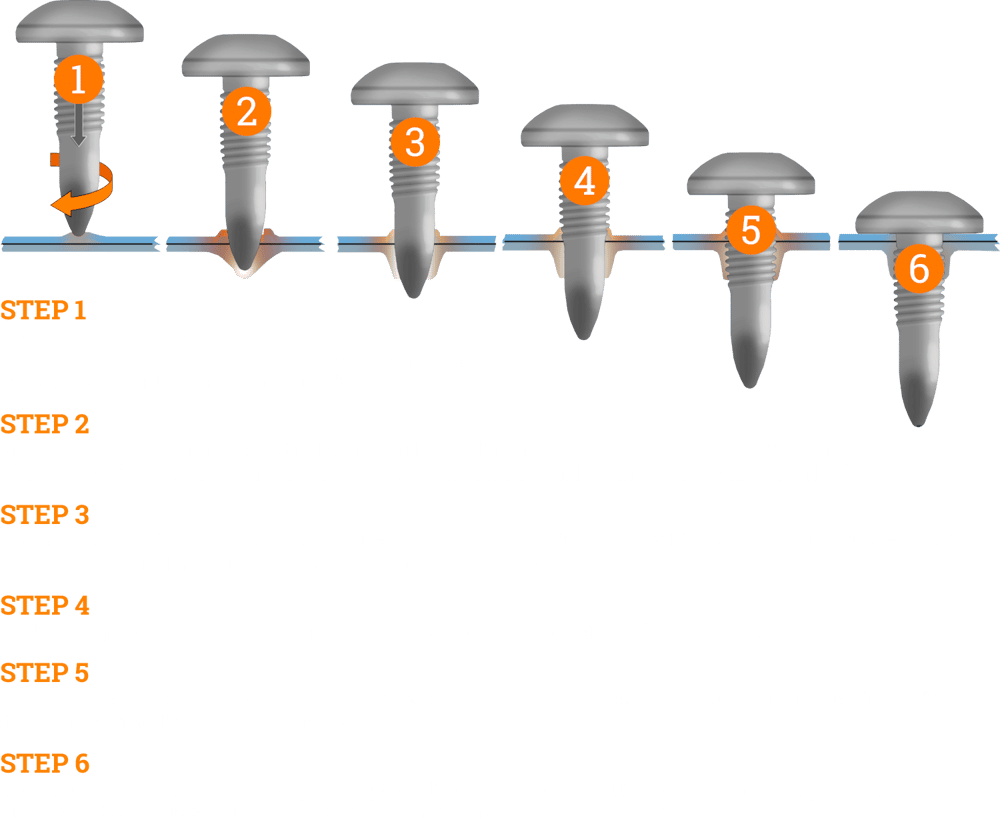

6 Step Process

The new Generation of Flow Drilling Joining Systems RSF25 WEBER

Technical Data

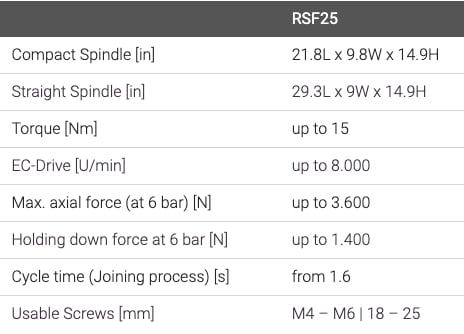

RSF Specs

WEBER CTA - Download Data Sheet



New call-to-action



New call-to-action

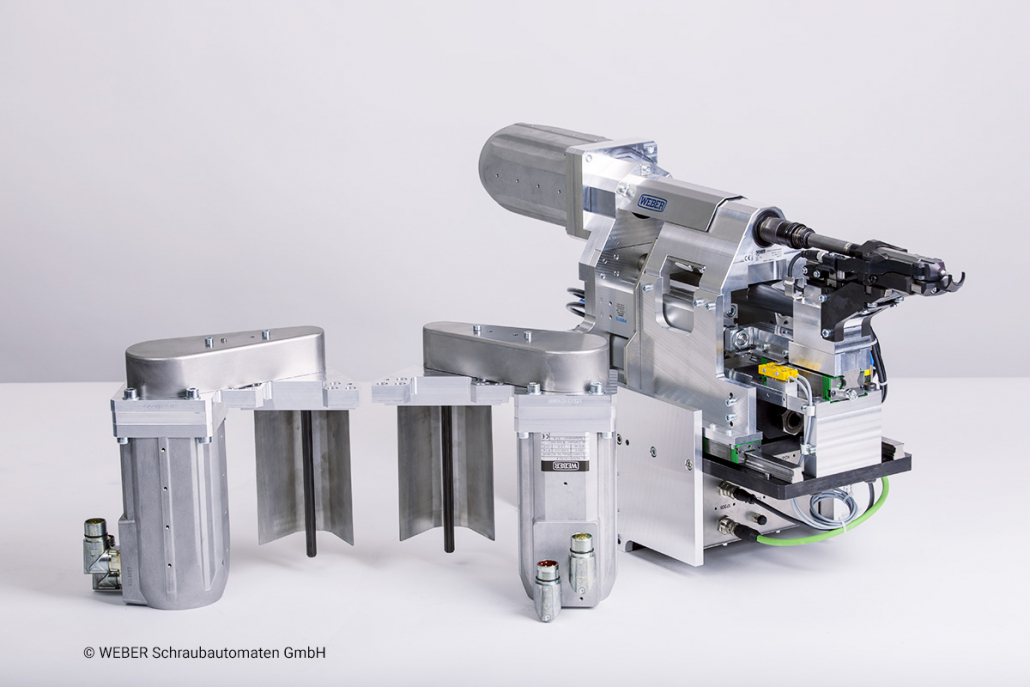

RSF Specs Image

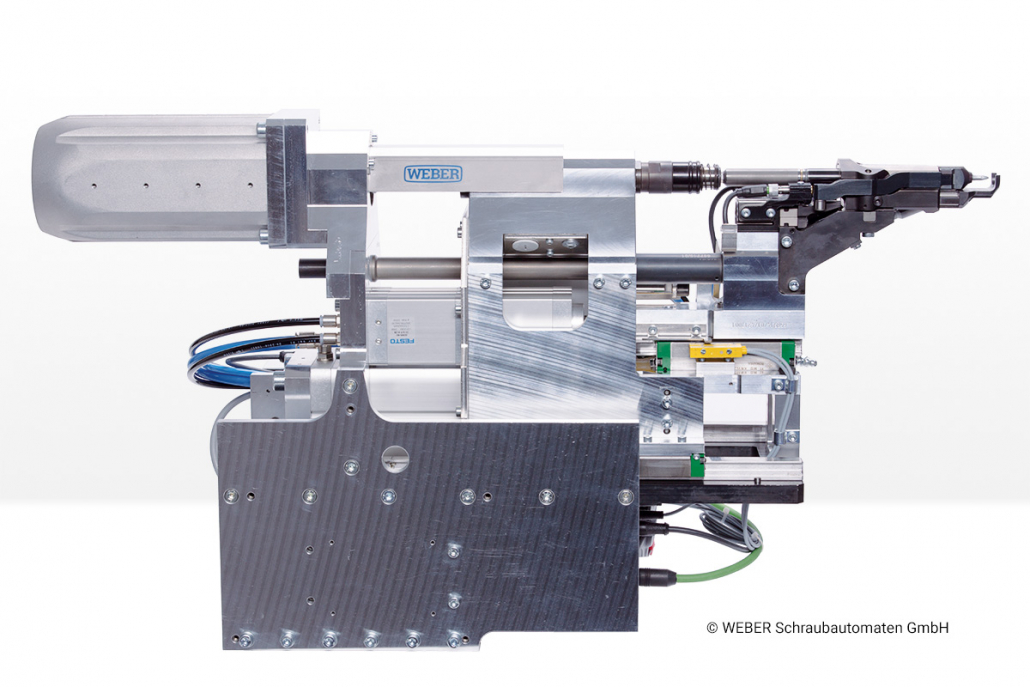

RSF Extra2

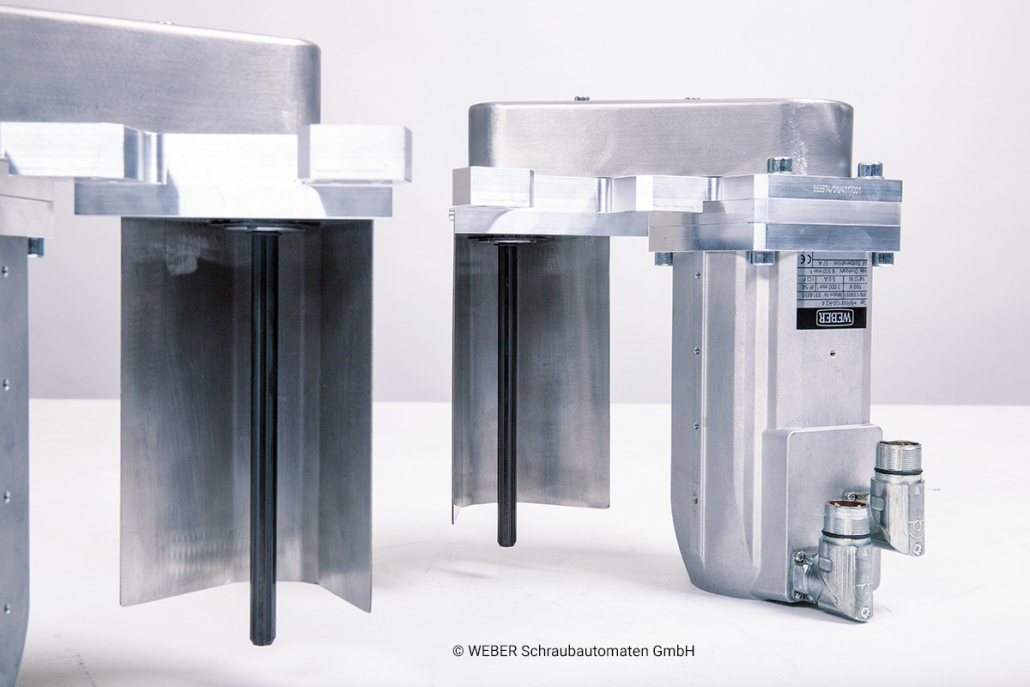

RSF Extra3
RSF Extra1
