    Inserting Systems - Fixtured Insertion System PEB



    System for pneumatic insertion process

    The WEBER PEB fixtured system feature a highly reliable and rugged design to allow a simple method of installing pins or Christmas tree clips or other style when the fasteners that are pushed in with up to 100lbs of thrust.

    These units are generally used on a dual or single stage application. The bit can be externally instructed to self-advance its automatic bit stroke device and install fastener while detecting whether the depth was achieved or not. When the start signal is given (usually through a PLC control system to a solenoid valve), the pusher bit advances forward out of the jaws to expose the bit and makes contact and seats the pin. This proven design can only add to the legendary WEBER reputation for reliability.  Customization is performed on most systems to ensure the utmost functionality for each fastener size and style. This device can accommodate almost any style of Pneumatic Press cylinder or even the newer designs in DC Servo actuators and can be used singly or in multiples for more complex installs. They can be used at any angle and even upside down for those difficult inverted applications, and these are often fitted with sensors to provide input to a PLC for control or reporting functions.



    Learn More About Our Inserting Systems

    We make automation easy

    Custom Screwdriving Solutions + Industry-Leading Support



    Request a Quote

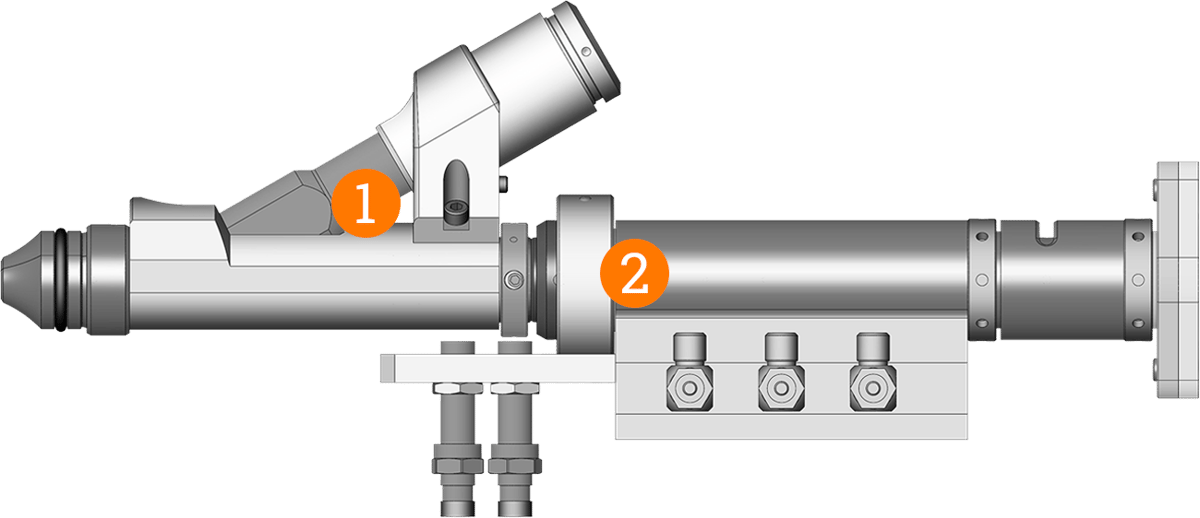

    PEB - Features Image

    Features



    Stationary system for insertion tasks up to 10 kN

    Automatic feed system

    Pneumatic drive

    Optional higher force and DC servo systems available



    PEB - numbered list 3

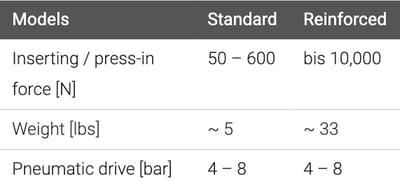

    Technical Data



    PEB specs



    New call-to-action



    New call-to-action

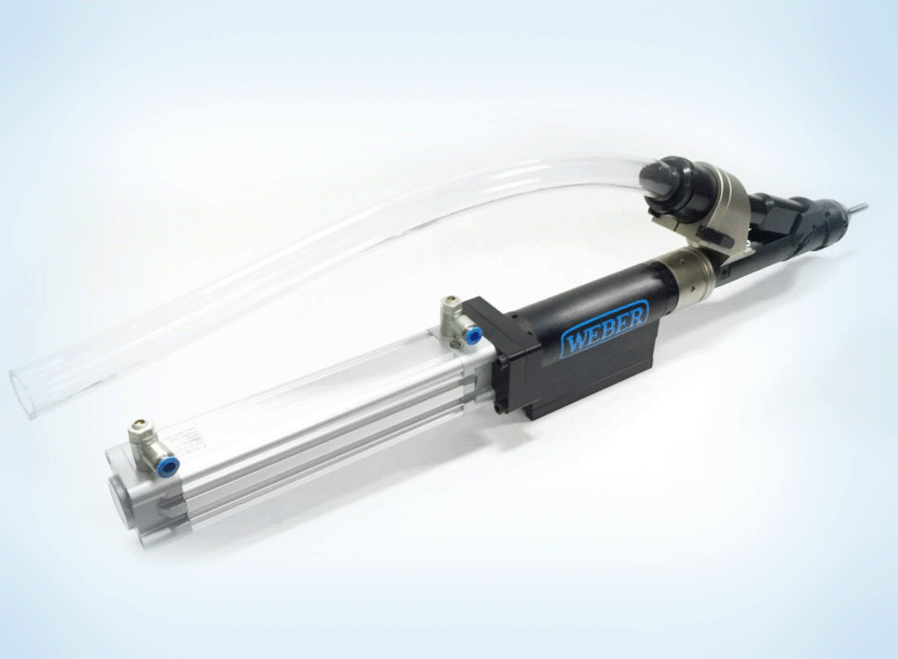

    PEB - Specs Images
