    HRC Screwdriving System for Human Robot Collaboration



    Fully collaborative automatic screwdriver, thanks to highly advanced sensing technology

    When humans and robots work together, the environment must be safe and efficient. The design and function of the WEBER HRC screwdriving system ensure that the most complex variant of Human Robot Collaboration can be realized in accordance with ISO TS 15066. The safety concept of the HRC Screwdriver SEV-C makes the fully collaborative assembly process possible. Moreover, the automatic feeding of the fasteners creates a highly economical workplace.



    HRC capable screwdriver: built for lightweight robots (cobot)

    The use of cobots is made possible by the low weight of the WEBER HRC Screwdriving Systems. Screwdriving applications can be implemented using a fully automatic SEV-C or SEV-L screwdriving spindle with automatic fastener feeding.. The SEV-C is the logical solution for the screwdriving and joining technology of the future, and even today it provides answers to the requirements for precision, safety and weight reduction.



    QUESTIONS? LET'S TALK

    We make automation easy

    Custom Screwdriving Solutions + Industry-Leading Support



    Request a Quote

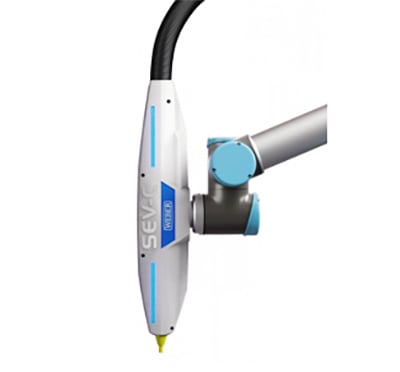

    Flexi - SEV-C
    SEV-C screw system
    • Lightweight spindle with low weight from 4 kg
    • Fully automated with ZEL feed system
    • For use in cooperative and collaborative environments, thanks to safety concept
    • Process: Screwdriving
    • Vacuum technology for hard-to-reach locations with extremely limited access



    Learn More Button

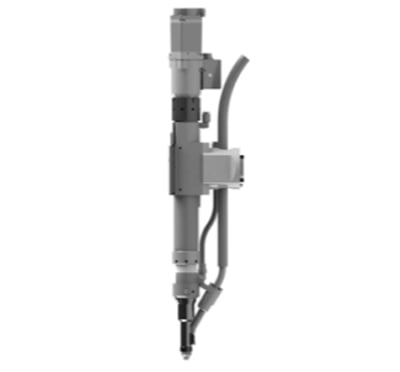

    Flexi - LWR
    LWR screw system SER-L/SEV-L
    • Lightweight spindle with low weight from 4 kg
    • Fully automated with ZEL/ZEB feed system
    • For use only in coexistence or with protection devices
    • Process: Screwdriving
    • Vacuum technology for hard-to-reach locations with extremely limited access

    Learn More Button

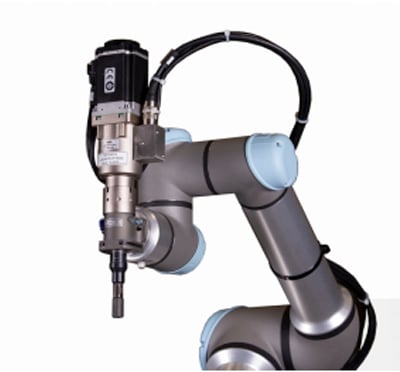

    Flexi - LWR2
    LWR screwdriver SEV-P
    • Lightweight spindle with low weight from 1.5 kg
    • Screwdriver for pick & place applications
    • For use only in coexistence or with protection devices
    • Process: Screwdriving
    • Vacuum technology for hard-to-reach locations with extremely limited access



    Learn More Button

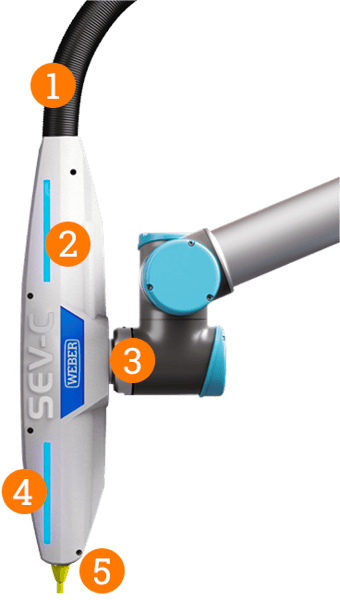

    SEV-C Features Image

    The HRC safety concept of the SEV-C automatic screwdriving machine

    The unique safety concept of the SEV-C screwdriving unit offers safety for the worker while implementing threaded connections. The collaborative working method opens up new opportunities:

    Wide range of Cobot applications
    Reduced space requirement
    Economic efficiency thanks to parallel processes
    Ergonomics and work quality

    SEV-C Features List
    Automated screwdriver for Human Robot Collabtoration (HRC) WEBER

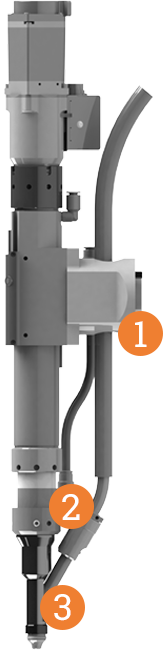

    SEV-L Features Image

    SEV-L screwdriving system features



    For use with lightweight robotic (Cobot)
    > compact, lightweight screwdriving spindle

    Ultra-short cycle times in the assembly process
    > automatic feeding of screws

    For hard-to-reach screw locations
    > vacuum suction



    SEV-L Features List





    Download Flyer Button



    New call-to-action



    New call-to-action

    Sev-C Specs Image
